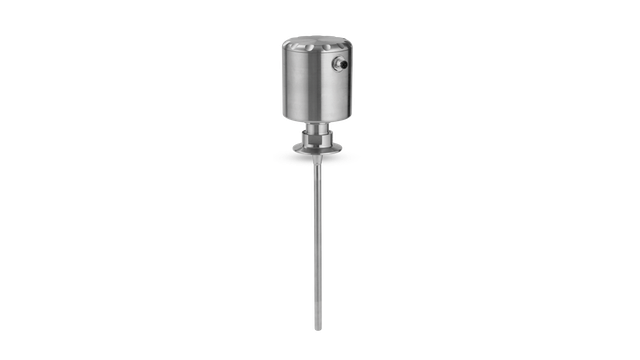

Potentiometric Level Transmitter
The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.
Compact, hygienic design
The Alfa Laval Potentiometric Level Transmitter is designed specifically for small tanks containing highly viscous and pasty products, such as ketchup, honey and toothpaste.
All wetted parts are made of AISI 316L stainless steel and PEEK, and designed to withstand process temperatures between -20 and +140°C. Because these 3-A certifed transmitters can withstand high temperatures, they are well suited for use in Cleaning-in-Place (CIP) and Sterilization-in-Place (SIP) processes.
Ease of installation
The Alfa Laval Potentiometric Level Transmitters are easily mounted in top, bottom or angled position. Regardless of position, advanced integrated electronics enable automatic recognition of the transmitter output signal thus ensuring reading accuracy.
For more information, please refer to Documentation.
Product Benefits
- Compact, hygienic design
- Easy of installation
- Designed specifically for small tanks
How it works
Operating principle
The Potentiometric Level Transmitter can be used with all media that have a conductivity of at least 50 μS/cm. The low resistive measuring probe on the transmitter conducts a high frequency current through the medium in the tank.
The voltage applied between the probe and the tank wall is then measured. The output voltage is proportional to the tank filling level. The measurement is unaffected by temperature and adhesive media.
Part of a broad instrumentation range
Alfa Laval offers a comprehensive range of instrumentation intended for hygienic applications in the dairy, food, beverage, home care, personal care, biotechnology and pharmaceuticals.
For a broader instrumentation range, explorer the different product categories: analytical instruments, cleaning validation instruments, flow instruments, level instruments, pressure instruments, temperature instruments and weighing instruments.
