Heating and cooling for LPG cargo handling

Global growth in LPG demand has increased the need for LPG transportation. Due to the physical characteristics of LPG, specialized cargo handling equipment is required on LPG carriers. LPG loading depends on efficient cooling in the cargo condenser, and there are additional thermal duties throughout the cargo handling system – especially if ethylene is also carried on board.

Marine Cargo LPG

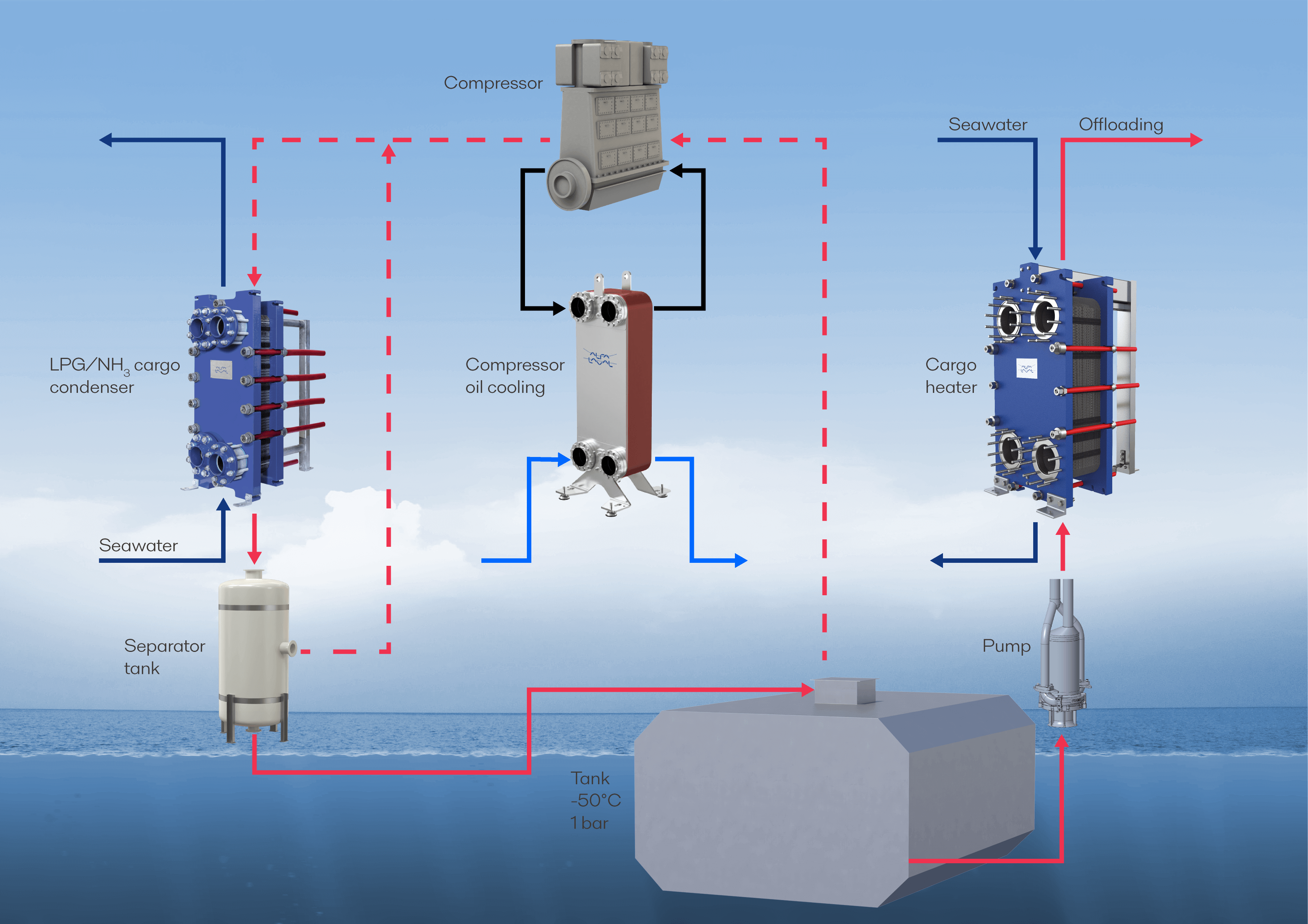

LPG Cargo Condenser

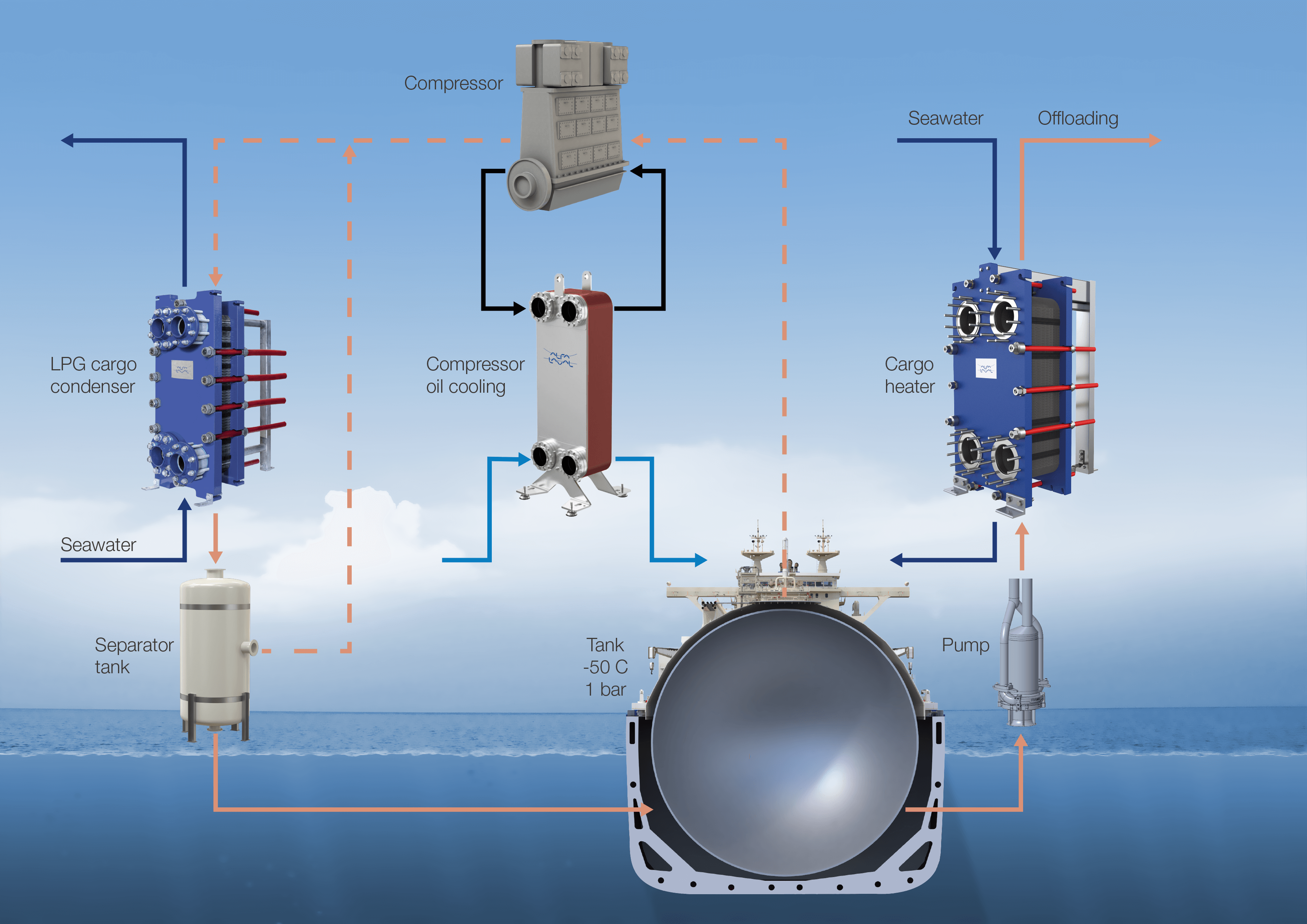

LPG Cargo Condenser new.png

Efficiently handling LPG cargo

The loading speed of an LPG carrier is determined by a number of factors. One of these is the cargo condenser capacity, which is influenced in turn by the temperature and flow rate of the seawater, the condensing pressure and the cargo tank temperature.

A semi-welded plate heat exchanger offers high capacity that is further extendable by adding plates. It thus ensures the highest possible loading rates under the given circumstances. A semi-welded plate heat exchanger is also suitable as the cargo heater, which is used when offloading the LPG.

The temperature of the lubricating oil for the BOG (boil-off gas) compressor is maintained by the compressor oil cooler. For the oil cooler, a copper-brazed heat exchanger offers the best balance of compactness and efficiency.

Carrying both LPG and ethylene

On an LPG/E carrier, which has interconnected LPG and ethylene cargo systems, the ethylene must be cooled to a far lower temperature than the LPG. A semi-welded plate heat exchanger is ideal for the ethylene refrigerant condenser, just as it is for the LPG cargo condenser.

For the refrigerant intercooler, a copper-brazed heat exchanger is normally suitable, since the refrigerant is typically propane. However, copper is incompatible with ammonia, which is an alternative refrigerant. If ammonia is used, a heat exchanger in 100% stainless steel is the correct choice.

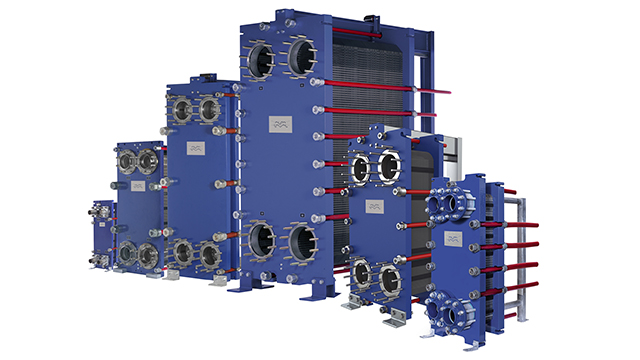

Semi-welded plate heat exchangers

Semi-welded plate heat exchangers are the best available technology for LPG cargo condensation and LPG fuel gas conditioning. They have proven benefits compared to alternative technologies, including efficiency, robustness and serviceability.

Long-lasting and easy to maintain, Alfa Laval semi-welded plate heat exchangers provide high uptime and true peace of mind. They can be installed on new vessels or retrofitted to replace other technologies with only minor piping adjustments.

Learn more

阿法拉伐半焊接板式换热器 semi welded plate heat exchangers

Alfa Laval brazed plate heat exchangers


The Alfa Laval CBM line of copper-brazed heat exchangers combines a gasket-free design with a wide performance range. The small footprint and high efficiency of CBM heat exchangers is an excellent fit for compressor oil coolers, and the specialized CB ACMH220 meets the additional needs of ethylene refrigerant intercoolers.

Learn more



The AlfaNovaM line of marine heat exchangers is manufactured in 100% stainless steel using Alfa Laval’s patented AlfaFusion technology. Because of their copper-free construction, AlfaNovaM heat exchangers can be used for ethylene refrigerant intercoolers when ammonia is the chosen refrigerant.

Learn more


Alfa Laval Marine Service


Worldwide and 24/7, Alfa Laval Marine Service is your path to greater uptime, optimized performance and true peace of mind. Our network is always on call, and our service offering brings reliability, efficiency and compliance throughout your equipment's lifetime.
