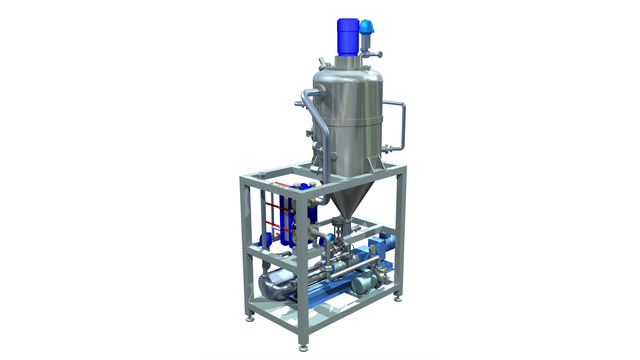

Alrox is a special process module designed for removing free, dispersed and/or dissolved air from a wide range of food products using vacuum deaeration.
How it works
How it works
The Alrox basic model works on the basis of hot deaeration.
Adding an optional Alfa Laval spinner distribution system makes it possible to work at lower temperatures, using cold deaeration.
The incoming product, which is normally at a temperature around 40–60°C (102–140°F), is fed into a vacuum vessel via a distributing nozzle. The vacuum present inside this vessel corresponds to a boiling temperature that is 2–5°C (3.6-9.0°F) lower than the product inlet temperature.
The product expands into the vacuum. The release of pressure, and the resultant boiling, causes instant evaporation of some of the water in the product. This has the effect of stripping out any air that may be present, in whatever form.
The vacuum in the separator is maintained by a liquid ring vacuum pump. The deaerated product is discharged through the bottom outlet to an extraction pump that pumps the product out to the next processing step.
In the Alfa Laval spinner distribution system, which is optional equipment for the Alrox deaerator module, a special disc rotates at high speed, spreading the product in thin layers as it enters the vacuum vessel. This means the entrapped air is mechanically exposed to the vacuum with maximum efficiency.
