Unique Mixproof CIP

Efficiently manage Cleaning-in-Place (CIP) media at critical system distribution points with the Alfa Laval Unique Mixproof CIP. Purpose-built for CIP media routing, this lightweight, double-block-and-bleed valve ensures CIP line safety. It directs pressurized cleaning fluids toward the area that requires cleaning without the risk of cross-contamination. This versatile CIP valve adapts to process requirements while meeting hygiene standards.

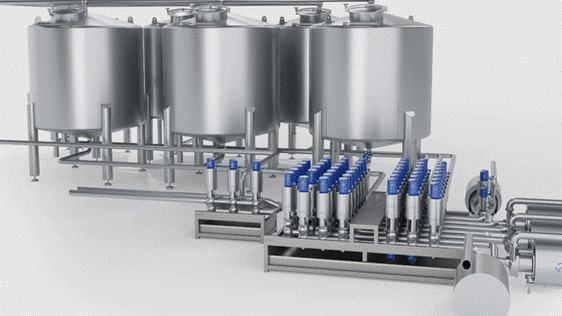

Unique Mixproof CIP 640x360

Purpose-built double seat valve for safe, reliable and cost-efficient routing of CIP media

  • Get the product safety you need by eliminating the risk of cross-contamination
  • Enhance the reliability and flexibility of your process and CIP setup during operation
  • Minimize the risk of unplanned downtime and time and resources spent on routine maintenance
  • Improve sustainability and limit environmental impact by reducing the use of water and CIP media
  • Lower the total cost of ownership with a proven, cost-efficient mixproof valve for routing cleaning media

Efficiently fill, empty and clean your processing and CIP lines without the risk of contamination with the Alfa Laval Unique Mixproof CIP. Cost-efficient double seat mixproof valve protects product safety when operating, forwarding or reversing the flow of CIP media.

Its modular design makes it easy to adapt to various applications, capacity requirements and changing needs.

Maintenance is easy, with longer intervals between service. Moreover, you can reduce the use of water and CIP media.

Available in various sizes, the Unique Mixproof CIP valve ensures complete control of CIP media and, if required, can be mounted upside down.


Protect your product

Get the product safety you need by eliminating the risk of cross-contamination and product loss, while ensuring efficient cleaning.

Boost your process

Enhance the reliability and flexibility of your process setup, with proven valve technology that matches the specific needs of your production.

Simplify your service

Minimize the risk of unplanned downtime, while spending as little time and resources as possible on routine maintenance.

Improve your sustainability

Limit your environmental impact, with greatly reduced water- and CIP media consumption and eliminated product loss.

.

How it works

Alfa Laval Unique Mixproof CIP valve is a normally closed (NC) valve controlled from a remote location by means of compressed air. The valve has two independent plugs and a three-seal design to separate the process fluid from the cleaning media; the space between the seals forms a leakage chamber at atmospheric pressure under all operating conditions.



Leakage rarely occurs; however, if it should, the fluid flows into the leakage chamber and drains through the outlet for easy detection. When the valve is open, the leakage chamber is closed. The fluid then flows from one line to the other. The valve’s three-seal design minimizes spillage, and its self-cleaning function ensures the CIP media passes through surfaces that are sanitary.



Exploded view_Unique Mixproof_CIP.png





With its balanced design, the valve primarily handles CIP media, ensuring complete control and eliminating water hammer. It can be mounted upside down. For increased holding pressures, support air can be applied.

Icon 2 Proven performance_ 640x360_new.png

Designed to maximize uptime in production, keeping service at a minimum.

Icon 1 Proven Performance promo_640x360_new.png

Eliminate unnecessary product loss, thanks to spillage-free operation.

Icon 3 Proven performance promo 640x360.png

By adding the intelligence of Alfa Laval ThinkTop, you save up to 90% in water and cleaning media.
